We offers a wide range of thermocouples. Pick from the list below to jump to the type you want.


  1. Miniature Adjustable Length Bayonets
  2. Metric Miniature Adjustable Length Bayonets
  3. Adjustable Length Bayonets with .240" OD Hose or .280" OD Hose
  4. Spring Type Adjustable Length Bayonet
  5. Fixed Length Bayonets
  6. Compression Style
  7. Surface Type (Washer Style)
  8. Spade Type (Shim Style)
  9. Bolt Type
  10. MgO Nozzle Clamp
  11. MgO Extension
  12. Plastic Melt Type
  13. Mineral Insulated


  Miniature Adjustable Length Bayonets

  thermocouples


  • Hose diameter .210"
  • .125"Ø x .5" probe
  • Cap turns along entire length
  • Flex hose acts like a spring
  • Fits standard adapter BA-1
  • Stainless Steel with 24 AWG fiberglass stranded wire
  • Thermocouples furnished Grounded


  Please reference catalog number when ordering along with Lead length "B"


Catalog Number Terminal Style
MBT08-14 Lugs
MBT08-15 Standard Male Plug
MBT08-16 Standard Female Plug
MBT08-17 Mini Male Plug
MBT08-18 Mini Female Plug


  Available Stock ISA Calibrations


J K E T
White (+)
Red (-)		 Yellow (+)
Red (-)		 Purple (+)
Red (-)		 Blue (+)
Red (-)
Iron
Constantan		 Chromel
Alunel		 Chromel
Constantan		 Copper
Constantan
1400 F 2100 F 1600 F 700 F




  Metric Miniature Adjustable Length Bayonets




  • Hose diameter .210"
  • .125"Ø x .5" probe
  • Cap turns along entire length
  • Flex hose acts like a spring
  • Adapter size .603" OD x .480" ID
  • Stainless Steel with 24 AWG fiberglass stranded wire
  • Thermocouples furnished Grounded


  Please reference catalog number when ordering along with Lead length "B"


Catalog Number Terminal Style
MET08-14 Lugs
MET08-15 Standard Male Plug
MET08-16 Standard Female Plug
MET08-17 Mini Male Plug
MET08-18 Mini Female Plug


  Available Stock ISA Calibrations


J K E T
White (+)
Red (-)		 Yellow (+)
Red (-)		 Purple (+)
Red (-)		 Blue (+)
Red (-)
Iron
Constantan		 Chromel
Alunel		 Chromel
Constantan		 Copper
Constantan
1400 F 2100 F 1600 F 700 F




  Adjustable Length Bayonets with .240" OD Hose or .280" OD Hose




  • Hose diameter .240"
  • .156"Ø x .5" probe
  • Cap turns along entire length
  • Flex hose acts like a spring
  • Adapter fits standard BA-1
  • Stainless Steel with 20 AWG fiberglass stranded wire
  • Thermocouples furnished Grounded
  • Can also be ordered with extra long double J slot fitting


  Please reference catalog number when ordering along with Lead length "B"


Catalog Number Terminal Style
BT08-54 Lugs
BT08-55 Standard Male Plug
BT08-56 Standard Female Plug


  Available Stock ISA Calibrations


J K E T
White (+)
Red (-)		 Yellow (+)
Red (-)		 Purple (+)
Red (-)		 Blue (+)
Red (-)
Iron
Constantan		 Chromel
Alunel		 Chromel
Constantan		 Copper
Constantan
1400 F 2100 F 1600 F 700 F




  Spring Type Adjustable Length Bayonet




  • Hose diameter .252" or .280"
  • .312"Ø x .5" probe
  • Cap turns along 10" length
  • Forms to most angles
  • Adapter size .603" OD x .480" ID
  • Stainless Steel with 20 AWG fiberglass stranded wire
  • Thermocouples furnished Grounded


  Please reference catalog number when ordering along with Lead length "B"


Catalog Number .252"Ø Hose Catalog Number .280"Ø Hose Terminal Style
MET08-1 BT08-14 Lugs
MET08-2 BT08-15 Standard Male Plug
MET08-3 BT08-16 Standard Female Plug
MET08-4 - Mini Male Plug
MET08-5 - Mini Female Plug


  Available Stock ISA Calibrations


J K E T
White (+)
Red (-)		 Yellow (+)
Red (-)		 Purple (+)
Red (-)		 Blue (+)
Red (-)
Iron
Constantan		 Chromel
Alunel		 Chromel
Constantan		 Copper
Constantan
1400 F 2100 F 1600 F 700 F

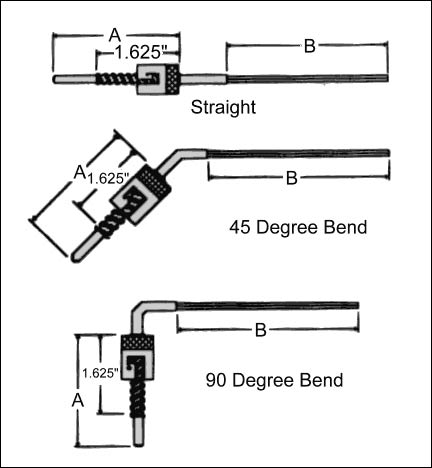

  Fixed Length Bayonets





  • Available in 1/8"Ø or 3/16"Ø probe
  • 24 AWG used on 1/8"Ø, 20 AWG used on 3/16"Ø and 1/4"Ø
  • Terminal options are Lugs, Standard Male and Standard Female Plus
  • Lead types: Stainless Steel Braid, Armor Cable, Fiberglass or Teflon

  Available Stock ISA Calibrations


J K E T
White (+)
Red (-)		 Yellow (+)
Red (-)		 Purple (+)
Red (-)		 Blue (+)
Red (-)
Iron
Constantan		 Chromel
Alunel		 Chromel
Constantan		 Copper
Constantan
1400 F 2100 F 1600 F 700 F

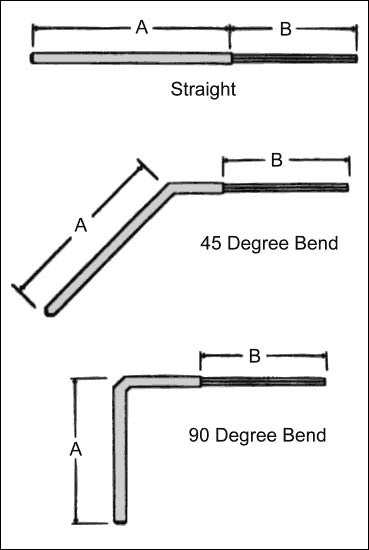

  Compression Style





  • Available with 1/8"Ø, 3/16"Ø or 1/4"Ø probe
  • 24 AWG used on 1/8"Ø, 20 AWG used on 3/16"Ø and 1/4"Ø
  • Terminal options are Lugs, Standard Male and Standard Female Plugs
  • Lead types: Stainless Steel Braid, Armor Cable, Fiberglass or Teflon

Available Stock ISA Calibrations




J K E T
White (+)
Red (-)		 Yellow (+)
Red (-)		 Purple (+)
Red (-)		 Blue (+)
Red (-)
Iron
Constantan		 Chromel
Alunel		 Chromel
Constantan		 Copper
Constantan
1400 F 2100 F 1600 F 700 F




  Surface Type (Washer Style)


  • Available with #8, #10, 1/4" and 1/2" bolt holes
  • Terminal options are Lugs, Standard Male and Standard Female Plugs
  • Lead types: Stainless Steel Braid, Armor Cable or Fiberglass


  Available Stock ISA Calibrations


J K E T
White (+)
Red (-)		 Yellow (+)
Red (-)		 Purple (+)
Red (-)		 Blue (+)
Red (-)
Iron
Constantan		 Chromel
Alunel		 Chromel
Constantan		 Copper
Constantan
1400 F 2100 F 1600 F 700 F




  Spade Type (Shim Style)


  • Available with sizes of 1/2" x 1/2", 3/4" x 3/4", 3/4" x 7/8", 1" x 1"
  • Terminal options are Lugs, Standard Male and Standard Female Plugs
  • Lead types: Stainless Steel Braid, Armor Cable or Fiberglass

Available Stock ISA Calibrations




J K E T
White (+)
Red (-)		 Yellow (+)
Red (-)		 Purple (+)
Red (-)		 Blue (+)
Red (-)
Iron
Constantan		 Chromel
Alunel		 Chromel
Constantan		 Copper
Constantan
1400 F 2100 F 1600 F 700 F




  Bolt Type






  • 1/4 - 28 Thread
  • Can be ordered with a special spring
  • Terminal options are Lugs, Standard Male and Standard Female Plugs
  • Lead types: Stainless Steel Braid, Armor Cable or Fiberglass

Available Stock ISA Calibrations




J K E T
White (+)
Red (-)		 Yellow (+)
Red (-)		 Purple (+)
Red (-)		 Blue (+)
Red (-)
Iron
Constantan		 Chromel
Alunel		 Chromel
Constantan		 Copper
Constantan
1400 F 2100 F 1600 F 700 F




  MgO Nozzle Clamp


  • Call for Diameter sizes
  • Terminal options are Lugs, Standard Male Plug, Standard Female Plug, Mini Male Plug and Mini Female Plug
  • Lead types: Stainless Steel Braid, Armor Cable or Teflon

Available Stock ISA Calibrations




J K E T
White (+)
Red (-)		 Yellow (+)
Red (-)		 Purple (+)
Red (-)		 Blue (+)
Red (-)
Iron
Constantan		 Chromel
Alunel		 Chromel
Constantan		 Copper
Constantan
1400 F 2100 F 1600 F 700 F




  MgO Extension


  • Terminal options are Lugs, Standard Male Plug, Standard Female Plug, Mini Male Plug and Mini Female Plug
  • Lead types: Stainless Steel Braid, Armor Cable or Teflon

Available Stock ISA Calibrations




J K E T
White (+)
Red (-)		 Yellow (+)
Red (-)		 Purple (+)
Red (-)		 Blue (+)
Red (-)
Iron
Constantan		 Chromel
Alunel		 Chromel
Constantan		 Copper
Constantan
1400 F 2100 F 1600 F 700 F

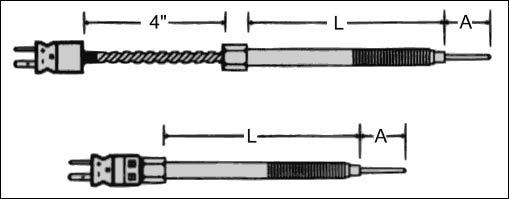

  Plastic Melt Type




  • Junction type Grounded

Available Stock ISA Calibrations




J K E T
White (+)
Red (-)		 Yellow (+)
Red (-)		 Purple (+)
Red (-)		 Blue (+)
Red (-)
Iron
Constantan		 Chromel
Alunel		 Chromel
Constantan		 Copper
Constantan
1400 F 2100 F 1600 F 700 F




  Mineral Insulated


  • Sheath material 304 SS, 316 SS, Inconnel, or 446 SS
  • Terminal options are Lugs, Standard Male Plug, Standard Female Plug, Mini Male Plug and Mini Female Plug, Screw Cover Head (compression type and NPT type)
