HI Series - 4mm High Watt Density Cartridge
Heater
Standard Features

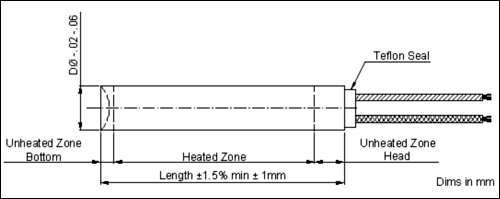

Diameter 4mm -.02 -.06
Swaged Teflon insulated leads
Gas proof welded heater tip
Teflon seal at lead exit
Can have a built in Thermocouple (Type J or Type K)
Options
Thermocouple: Type J or Type K
Measuring point at tip or within heated zone (always ungrounded)
Lead length
Protective sleeving (externally crimped on)
Reference Notes
Note maximum operating temperature of 900 deg F.
To increase tool temperature, the connection head should be
positioned a maximum of 11 mm outside the tool or a counter bore
hole depth of 11 mm and a diameter of 5mm should be constructed
if the connection head is placed inside the tool
