NP Series - Low Watt Density Cartridge Heater
|
|
| |
|
|
| |
|
|
| |
|
|
| |
Diameters Available: |
|
| |
|
|
| |
| Metric |
8 |
11 |
12 |
13 |
14 |
15 |
16 |
16.5 |
|
18 |
19.5 |
22 |
23 |
25 |
26 |
35 |
36 |
|
38 |
39 |
40 |
|
|
|
|
|
|
|
| |
|
|
| |
Other Diameters Available - Please Consult Factory
for Others |
|
| |
|
|
| |

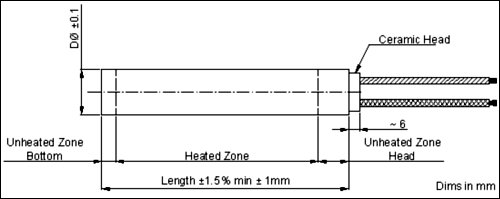

Standard Construction Details: |
|
| |
|
|
| |
- Lengths from 65mm
- Choice of sheath material: steel, brass or stainless steel depending
on diameter
- Lead connection standard 200mm fiberglass insulated leads
- Heater tip rolled to hold in place
|
|
| |
|
|
| |
German Manufactured - Standard delivery 2 to
4 weeks |
|
| |
|
|
| |
Options: |
|
| |
- Different length and diameter
- Low voltage (12 or 24 Volt) possible
- Choice of lead lengths
- Heater end disc soldered or welded (standard is rolled end)
- Wattage distribution
|
|
