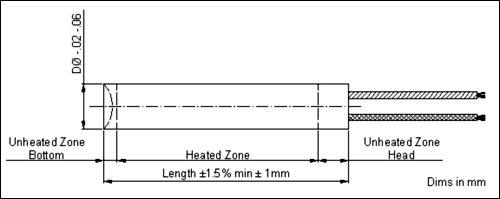

LI Series - Medium Watt Density Cartridge Heater
|
|
| |
|
|
| |
|
|
| |
|
|
| |
Diameters Available: |
|
| |
|
|
| |
| Imperial |
1/4" |
3/8" |
5/16" |
1/2" |
5/8" |
11/16" |
3/4" |
1" |
| Metric |
6.5 |
8 |
9.5 |
10 |
12 |
12.5 |
15 |
16 |
|
18 |
19 |
20 |
25 |
|
|
|
|
|
|
| |
|
|
| |
Other Diameters Available - Please Consult Factory
for Others |
|
| |
|
|
| |
All
LI Type Heating Elements Are Centerless Ground as Standard |
|
| |
|
|
| |
- Provide +/-.0008" Diameter Tolerance
- Allows better heat transfer resulting in longer life
- Gas tight welded tip
- Lengths available - from 4" (stock)
- Wattage - 80 W/in2 maximum watt density (with centerless ground
surface)
- Lead connection - swaged, crimped, or inline screw terminals
- CE approve
|
|
| |
|
|
| |
Options: |
|
| |
- Diameter (Special Diameter Tolerance if required)
- Length (Special Length Tolerance if required)
- Lead connection, lead type and lead protection
- Voltage and Wattage
- Specialized Wattage Distribution to provide more uniform heat
pattern
- Lead exit styles (right angle block, right angle elbow, right
angle exit)
- Special Stamping - Labeling Needs
|
|
| |
|
|
